High Precision High Response Linear Voice Coil Motor For Automation Semiconductor
| Plaats van herkomst | China, Suzhou |
|---|---|
| Merknaam | SUPT MOTION |
| Certificering | ISO9001,CE,3C |
| Modelnummer | VCAB-reeks |
| Min. bestelaantal | 1 stks |
| Prijs | $110-$190 |
| Verpakking Details | Gepersonaliseerde verpakkingen enz. |
| Levertijd | 1-5 stuks, 5 dagen. > 20 stuks, te onderhandelen |
| Betalingscondities | T/T |
| Levering vermogen | Te onderhandelen |
Contacteer me voor vrije steekproeven en coupons.
WhatsAPP:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Garantie | 3 maanden tot 1 jaar | Productmodel | VCAB0044-0059-00A |
|---|---|---|---|
| gewicht ((g) | 43 | Piekkracht (N) | 44 |
| Totale slag (mm) | 5.9 | Maximale spanning (V) | 14.3 |
| Sollicitatie | Automatisch Product | Snelheid | Hoog |
| Producttype | de lineaire motor van de stemrol | Commutatie | Borstel |
| Continu kracht ((N) | 17.7N | Toepassingsgebieden | 3C-elektronica, halfgeleiders, automatisering, optica, inspectieapparatuur |
| Precisie | Hoog |
Productomschrijving
Product Description:

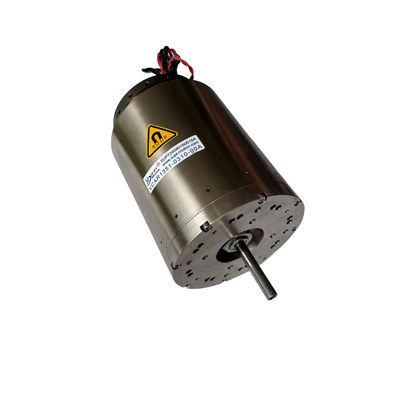

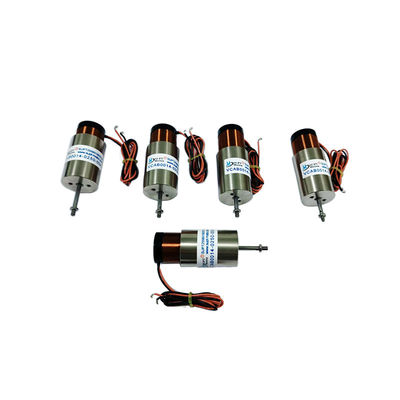

SUPT's VCAB0044-0059-00A linear voice coil motor, with its high precision and high-speed performance, excels in semiconductor inspection equipment, automated optical inspection platforms, and advanced manufacturing systems. The motor features low damping and high bandwidth, maintaining minimal positioning errors and high repeatability during high-speed movements. Its cog-free design enables smoother displacement, making it especially suitable for micro-displacement adjustments, probe station positioning, dispensing, chip placement, test fixture positioning, and fast inspection platforms. Its outstanding acceleration capability also meets the strict requirements for rapid response on high-throughput production lines.
In semiconductor automation, the Linear Voice Coil Motor has become an essential actuator thanks to its high acceleration, nanometer-level precision, zero-cogging motion, and fast dynamic response. The direct-drive mechanism ensures ultra-smooth motion without mechanical backlash, enabling superior performance in wafer handling, micro-positioning, lithography autofocus systems, packaging alignment, and high-speed inspection platforms.
Features:
- Nanometer-Level Positioning Accuracy
- High Acceleration / Fast Dynamic Response
- Zero Cogging / Zero Backlash
- Ultra Silent / Particle-Free Motion
- Supports Closed-Loop Position / Force / Velocity Control
Technical Specifications :
Stroke:5.9mm
Continuous Force:17.7N
Peak Force:44N
Force Constant:8N/A
Resistance:6.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:2.3A
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Wafer Handling Robot:Provides high-speed linear motion and flexible compensation, improving film transfer efficiency.
-
Lithography Autofocus Stage:Achieve nanometer-level focus fine-tuning and platform compensation.
- AOI / AVI /Optical / Visual Inspection:Maintain image stability during high-speed scanning to reduce scanning errors.
- Die Sorter:For high-speed picking, precise position control, and micro-displacement alignment.
- Probe Tester:Control the contact force of the test probe to ensure test accuracy and repeatability
- Precision Dispensing:Control the Z-axis height and glue dispensing pressure to improve consistency.
- Packaging Assembly Stations:Supports ultra-fine micro-packaging nanometer positioning and high-speed locking operations.
