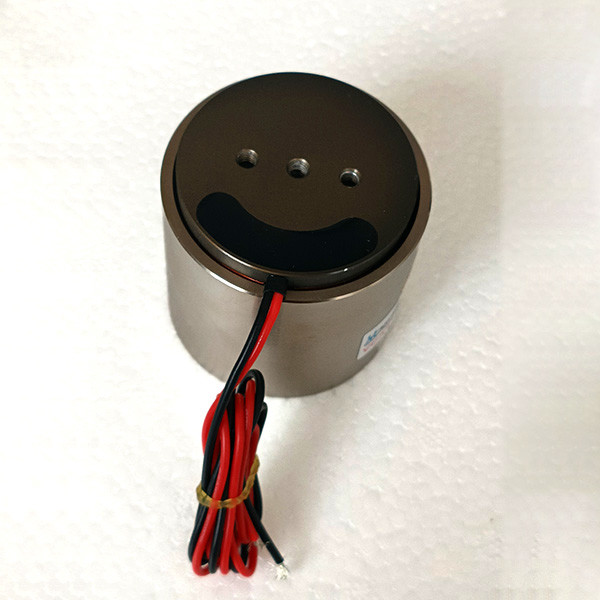

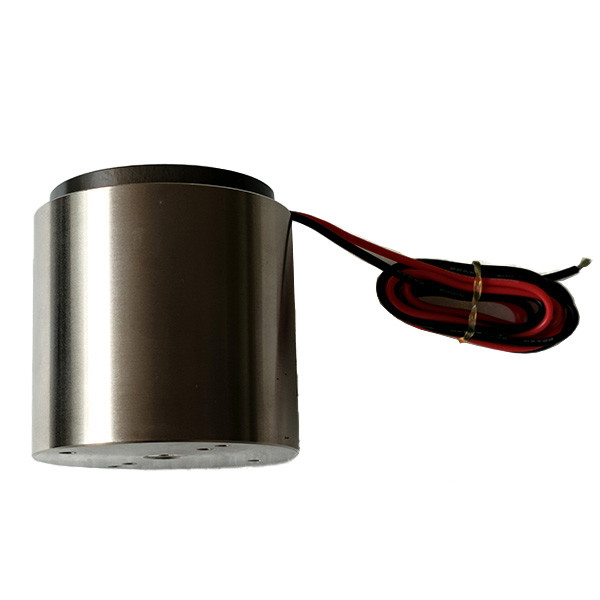

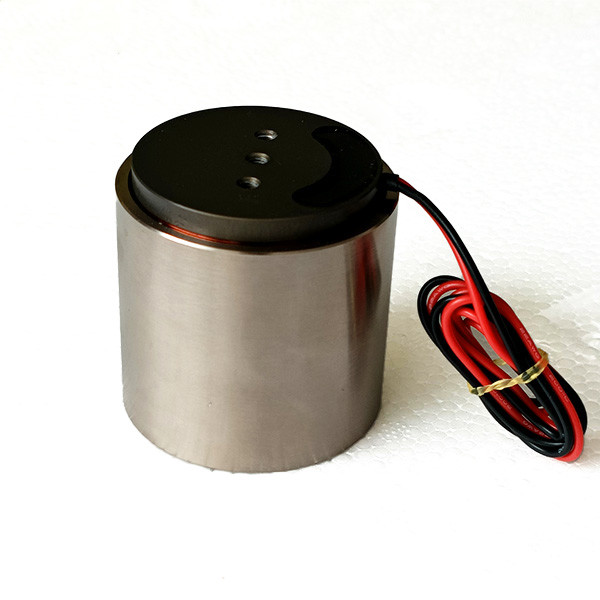

High Precision Micro VCAR Series For Aerospace Voice Coil Motors
| Plaats van herkomst | China, Suzhou |
|---|---|
| Merknaam | SUPT MOTION |
| Certificering | ISO9001,CE |
| Modelnummer | VCAR-reeks |
| Min. bestelaantal | 2 stks |
| Prijs | $105-$183 |
| Verpakking Details | Gepersonaliseerde verpakkingen enz. |
| Levertijd | 1-5 stuks, 5 dagen. > 20 stuks, te onderhandelen |
| Betalingscondities | T/T |
| Levering vermogen | te onderhandelen |
Contacteer me voor vrije steekproeven en coupons.
WhatsAPP:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Type | Direct aangedreven spreekspoelmotor | Productmodel | VCAR0007-0127-00A |
|---|---|---|---|
| Piekkracht | 7,1N | Maximale spanning | 12.8V |
| Hartinfarct | 12,7 mm | Gewicht van de spoel (g) | 11.4 |
| Kosten | Laag | Beschermen functie | Totaal ingesloten |
| Levensduur | Lang | Item | Mini Electric Motors |
| Markeren | High Precision VCAR voice coil motor,Aerospace voice coil motor,Micro VCAR series motor |
||
Productomschrijving
Product Description:
VCAR series voice coil motors are designed for aerospace applications, providing high-speed response, nanometer-level precision, and minimal vibration for flight control systems, optical detection devices, and UAV micro-actuation. Aerospace applications demand high reliability, rapid dynamic response, and low inertia, all of which VCAR motors provide.
The VCAR0007-0127-00A model offers high-precision micro-displacement, ideal for satellite optics focusing, aerospace sensor movement, and micro-adjustment mechanisms of aircraft. Lightweight movers reduce inertia, ensuring smooth high-speed reciprocating motion, while closed-loop control compensates environmental disturbances in real time to maintain precise positioning.
VCAR motors are also applied in UAV gimbal adjustment, aerospace instrumentation scanning, optical measurement systems, and lab-based flight simulation platforms. Compact design allows integration in space-limited equipment, while high-frequency response ensures smooth motion under dynamic operation.
Features:
High speed and acceleration for aerospace dynamic requirements
Nanometer-level precision for micron-level positioning
Cogging-free, smooth, vibration-free motion
Compact micro design for space-constrained devices
High-frequency response, closed-loop control ensures precision
Lightweight mover reduces inertia, improving dynamics
High stability and reliability for extreme conditions
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
Satellite optics micro-adjustment
Aerospace sensor scanning
UAV gimbal micro-adjustment
Aircraft micro-adjustment mechanisms
Aerospace optical measurement systems
Lab flight simulation platforms
FAQ:
Q: Can VCAR0007-0127-00A be used for UAV micro-adjustments?
A: Yes, high-speed and high-precision features allow micron-level gimbal adjustments.
Q: Is long-term high-frequency operation reliable?
A: Very low friction and cogging-free design ensure stable long-term operation.
Q: Can it be used for optical instrument focusing?
A: Fully suitable; high precision and smooth operation guarantee optical focus accuracy.
